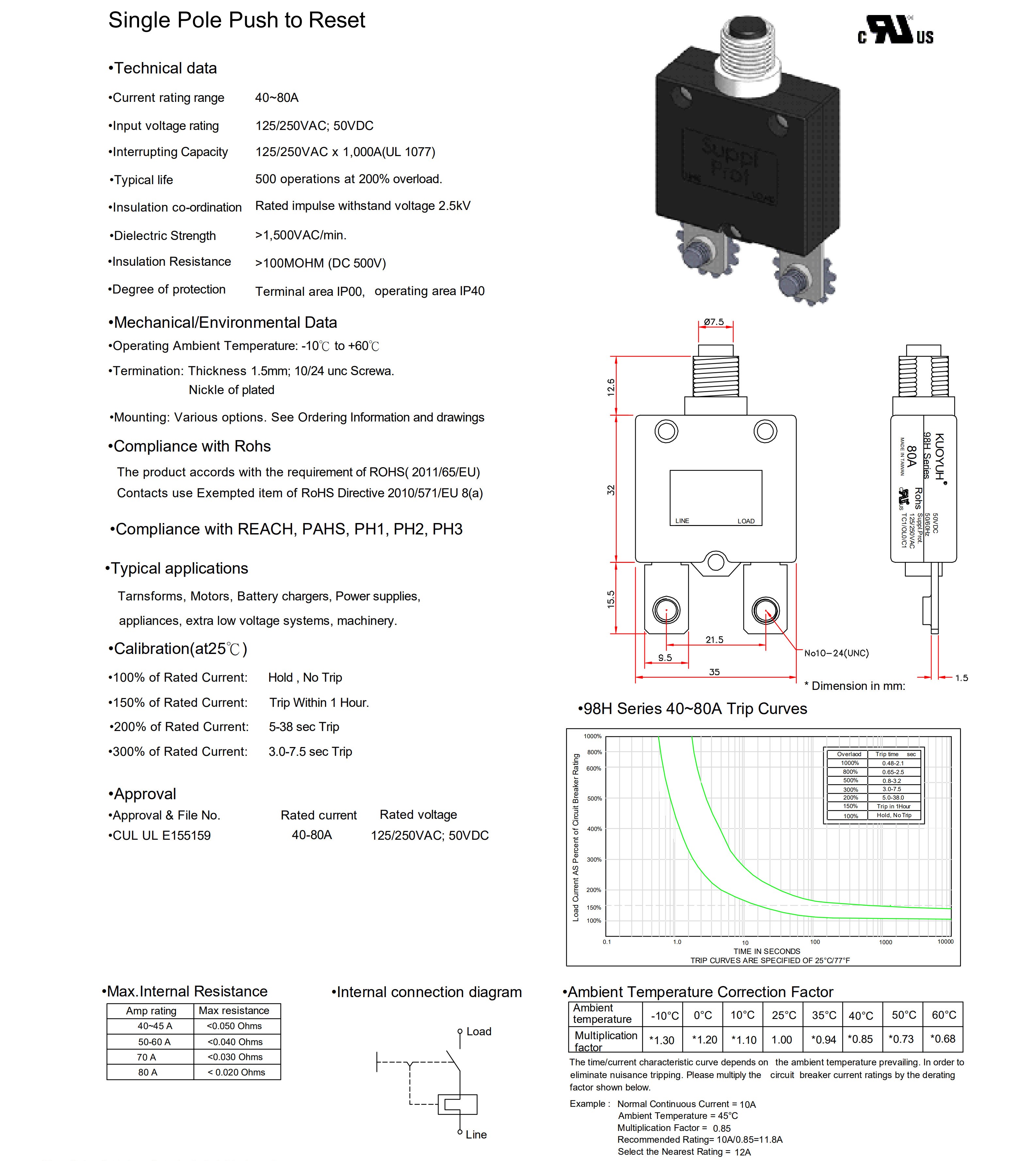

98H Series Thermal Circuit Breaker-
产品规格
额定电流(rating):40A_80A
输入电压(lInput PoWer):125VAC/250VAC/32VDC50_60HZ
耐电压强度(Withstand voltage strength):1500vAC/1min,
漏电电流≤0.5mA(1500VAC/min,the leaked current is less than ≤0.5mA)
绝缘电阻(lnsulation Resistance):500VDC1Min≥100M2
额定短路能力(Rated short_circuit capacity):125VAC/1000A,250VAC/1000A
额定通断能力(Rated breaking capacity):6倍额定电流
(6 times rated current)
复位方式(Reset):手动复位(Manual Push Reset)
应用领域
适用各类电机,马达、水泵、空压机、清洗机、电动工具、搅拌机、家用电器、发热电器等……
Apply to all kinds of motor, motor, water pump,
air compressor, washing machine,
electric tools, mixer, household
appliances, heating appliances, etc...
